Mitutoyo 178-743-13 SJ-220R Portable Surface Roughness Tester, Retractable Drive Unit, Stylus Tip Angle 60°, Radius 2μm, Imperial / Metric, Measuring Range 17.5mm

PDF

• The Mitutoyo 178-743-13 SJ-210 Portable Surface Roughness Testers have the following specifications:

  • Range X-Axis: .7″/17.5mm
  • Measuring Force: .75mN
  • Stylus Tip (Diamond, angle °/ tip radius): 60 / 2μm
  • External I/O: USB I/F, Digimatic output, Printer output, RS-232C I/F, Footswitch I/F
  • Measuring Speed: .01, .02, .03 in/s / .25, .50, .75 mm/s
  • Returning Speed: .039 in/s / 1 mm/s
  • Detector Z-Range: 1000, 14400, 4000 μin / 100, 25, 360 μm
  • Detector Z-Range Resolution: .08, .20, .80 μin / .002, .006, .02 μm
  • Skid Radius of Curvature: 40 mm
  • Skid Force: less than 400 mN
  • Detector Type: Differential inductance
  • Power Supply (battery): Rechargeable Ni-MH
  • Power Supply: AC Adapter
  • Charging Time: 4 hrs
  • Endurance: 1000 measurements (approx)
  • External Data Storage: Micro SD card
  • Display Unit: 2.05 x 2.59 x 6.3 in / 52.1 x 65.8 x 160 mm
  • Drive Unit: 4.5 x 9 x 1 in / 115 x 23 x 26 mm
  • Mass: 1.1 lbs / .5 kg

  The 178-743-13 SJ-220 series of surface roughness measuring instruments offers excellent portability and ease of use on-site, it now also provides touch screen functionality for intuitive operability. Equipped with a built-in battery, it can perform measurements even in environments where power is not available and can be used approximately 1000 times on a full charge. Cableless and paperless work is also made possible by using the Wireless Unit for Measuring Instrument U-WAVE-TIB. This is a user-friendly device that provides compatibility and versatility to meet the diverse needs of manufacturing sites.

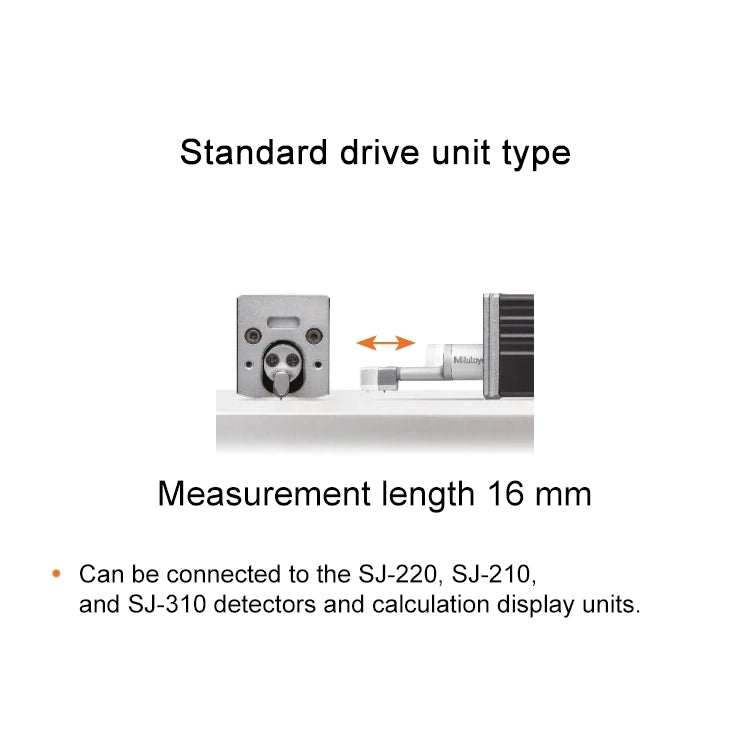

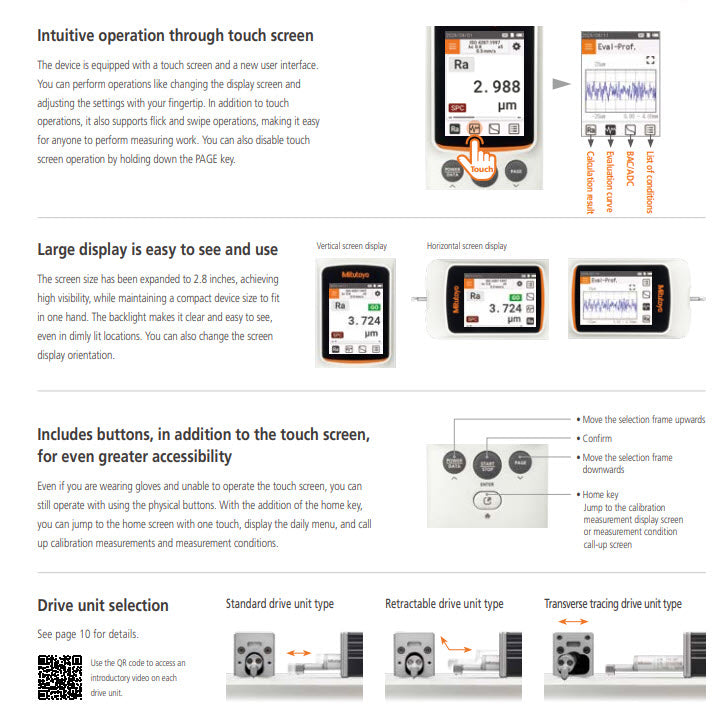

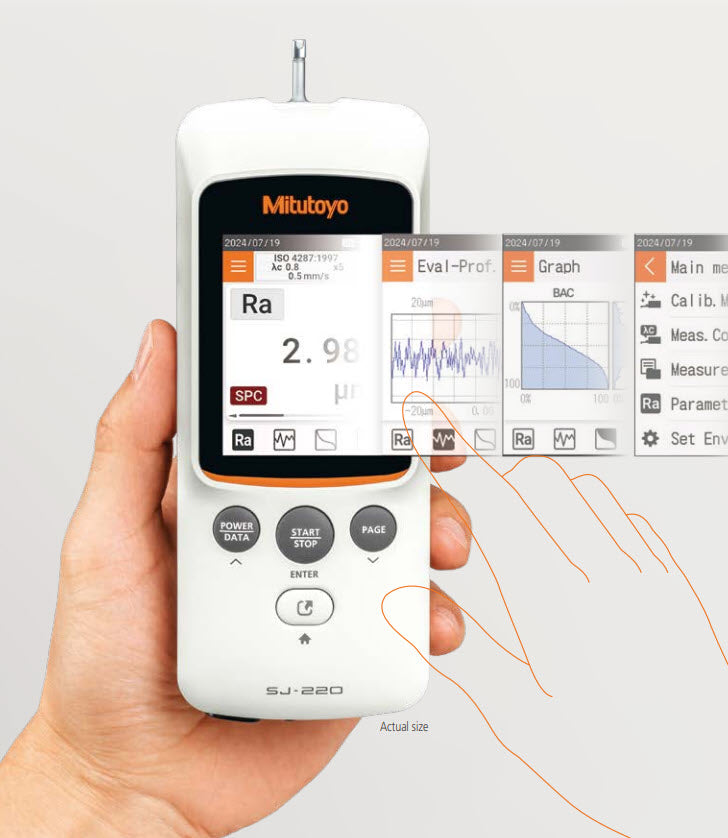

  Measurements can be made on-site, so there is no need to transport large and heavy workpieces. Light and compact, the device is easy to carry and allows for simple one-touch measurement. The device is equipped with a touch screen and a new user interface. You can perform operations like changing the display screen and adjusting the settings with your fingertip. The screen size has been expanded to 2.8 inches, achieving high visibility while maintaining a compact device size to fit in one hand.

  Features:

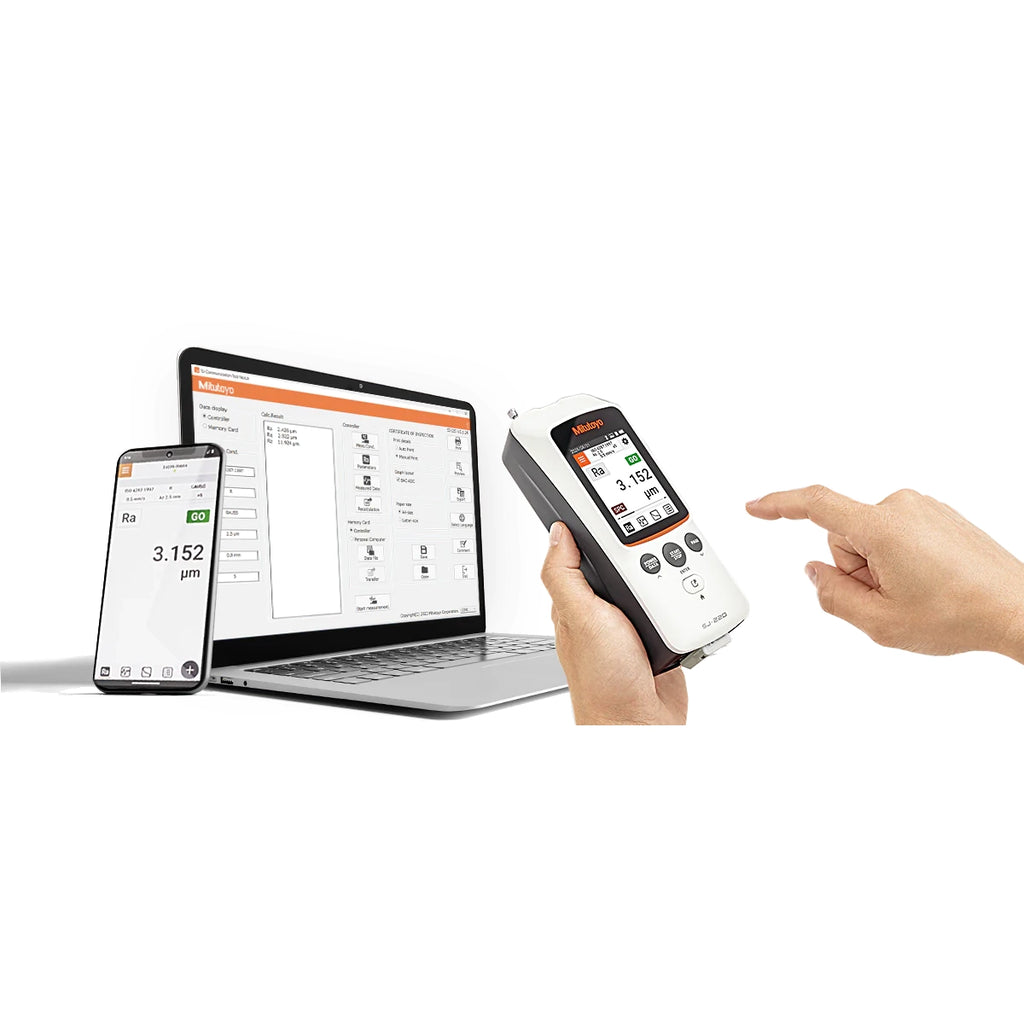

  • Increased measuring efficiency capable of displaying results and setting conditions via wireless communication when used with option accessory U-WAVE-TIB
  • Built-in 2.8-inch color graphic, back-lit LCD display provides excellent readability, improved visibility and is easy-to-use in dark environments
  • Operation keys are clearly defined on the front of the unit and under the sliding cover
  • Internal memory stores up to 10 measurement conditions and one measured profile
  • An optional memory card can be used to store large quantities of measured profiles and conditions
  • Password protection prevents unintended operations and protects instrument settings
  • The display interface supports 16 interchangeable languages
  • LCD display mode can be freely switched between portrait and landscape as well as left-hand or right –hand direction
  • The Surftest SJ-220 complies with the following standards: ISO (ISO 21920, ISO 4287:1997,  ISO 13565:1996, ISO 12085:1996, ISO 21920:2021), JIS (JIS B0601:1982, JIS B 0601:1994, JIS B 0601:2013, JIS B 0671:2002, JIS B 0631:2000), ASME B46.1, VDA2006, and Switchable
